Auto 1000BPH Carbonated Soft Drink 3 In 1 Washing Filling Capping Machine

Name: Auto 1000BPH Carbonated Soft Drink 3 In 1 Washing Filling Capping Machine
Brand: NAVAN MACHINE
Price: 10 USD

China Auto 1000BPH Carbonated Soft Drink 3 In 1 Washing Filling Capping Machine wholesale

Brand Name : NAVAN MACHINE

Model Number : CGFD8-8-4

Certification : CE,ISO

Place of Origin : China

MOQ : 1 Set

Price : 10,000-15,000USD

Payment Terms : L/C , T/T / Cash / West Union / MoneyGram

Supply Ability : 15 Sets Per Months

Delivery Time : 20-45 Working Days After Receiving Your Deposit Payment

Packaging Details : Wooden Case Package/PE Film Package

Material : Food stage stainless steel

Control : PLC & touch screen control

Capacity : 800-1000BPH@500ml

Suitable Bottle : PET Bottle

Bottle Volume : 100-2000ml

Dimension : By order

Function : Washing Filling Capping

After-sales service provided : Engineers available to service overseas/Online support

Contact Now

Auto 1000BPH Carbonated Soft Drink 3-In-1 Washing Filling Capping Machine

Carbonated soft drink 3-in-1 filling machine is mainly used in the Equal pressure filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling carbonated beverage in bottles made of polyester and plastics.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

Product Paramenters:

Model	CGFD8-8-4
Application	Soda water , sparkling water , Govas, cola etc ...carbonated drink
Number of washing,filling& capping heads	8-8-4
Production capacity(500ml)	800~1000
Filling precision	≤±5mm(liquid level)
User Ambient Conditions	Temperature:10~40℃; Humidity: No dew
Suitable bottle specification	Volume=100-2000ml Diameter φ=50-100 Bottle height H=150 ~340mm
Bottle type	Plastic bottle / PET Bottle
Bottle neck/Cap Style	Plastic Screw Cap φ=20-50
Machine material	Food stage SS304 OR SS316
Air source pressure(Mpa)	0.5-0.6
Filling way/principle	Isobaric filling
Motor power(kw)	Main motor 1.9kw
Control System	SIMENS PLC+ TOUCH SCREEN
Features	No Bottle No Filling No Bottle No Capping
Power Supply	Voltage:220V~415V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions(mm)	190014202000
Weight (kg)	1500

Product Description

Washing Parts.
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Auto 1000BPH Carbonated Soft Drink 3 In 1 Washing Filling Capping Machine

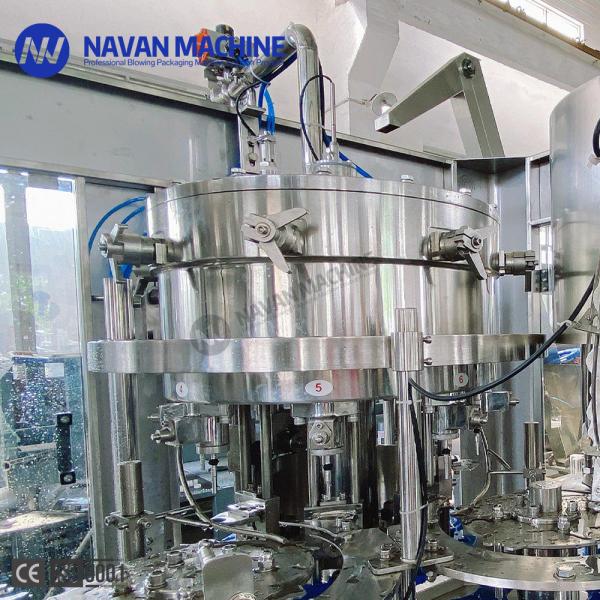

Filling Parts.
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Auto 1000BPH Carbonated Soft Drink 3 In 1 Washing Filling Capping Machine
Capping Parts.
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam

Auto 1000BPH Carbonated Soft Drink 3 In 1 Washing Filling Capping Machine

Our Service

Standardized workshop of total 20,000 square meters.
Verification Certificates of equipments: ISO9001:2001; CE Certificate, Logo trademark registration, etc.
The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
